Announcing Preset’s UI integration with dbt Cloud

Beto Dealmeida, Satoko Nakayama

Join the “Syncing databases, datasets, and metrics from dbt” webinar to see the product demo and get your questions answered! Sign up here.

While many teams create and manage databases, datasets, and metrics using Preset's user interface, some organizations prefer to handle them in source control using a data transformation layer like dbt. dbt simplifies the process of generating reliable, clean datasets and metrics for visualization in Preset (Enterprise plan).

Preset has recently integrated with dbt Cloud via its user interface, enabling data teams to define data models (databases, datasets, and metrics) as version-controlled assets within dbt Cloud and synchronize them with Preset Cloud. While we have been supporting integration with dbt Cloud and dbt Core through Preset CLI for some time, the new feature allows you to seamlessly sync the two tools via the Preset user interface.

We will demonstrate how you can synchronize your dbt models with Preset using the new feature. If your organization is using the open-source dbt Core, jump to this article instead.

Before we delve into the details, we understand that many teams are curious about the impact of dbt's acquisition of Transform and of the recent announcement regarding the dbt Semantic Layer integration with MetricFlow on Preset's compatibility with dbt. While we await further information to define our roadmap, we’re closely monitoring the news from dbt and plan to support dbt's new semantic layer features rather than building upon the old ones.

Using Preset with dbt Cloud

To show how the integration works we’re going to use this dbt project. The project is identical to the classic Jaffle Shop project from the dbt tutorial, with the addition of a few metrics:

  - name: new_customers
    label: New customers
    model: ref('customers')
    description: "The number of paid customers using the product"

    calculation_method: count
    expression: customer_id

    timestamp: first_order_date
    time_grains: [day, week, month]

      - first_name

      - field: number_of_orders
        operator: '='
        value: '0'

  - name: total_customers
    label: Total customers
    model: ref('customers')
    type: count
    sql: customer_id

  - name: paying_customers
    label: Customers who bought something
    model: ref('customers')
    type: count
    sql: customer_id
      - field: number_of_orders
        operator: '>'
        value: '0'

  - name: ratio_of_paying_customers
    label: Percentage of paying customers
    calculation_method: derived
    expression: "{{metric('paying_customers')}} / {{metric('total_customers')}}"

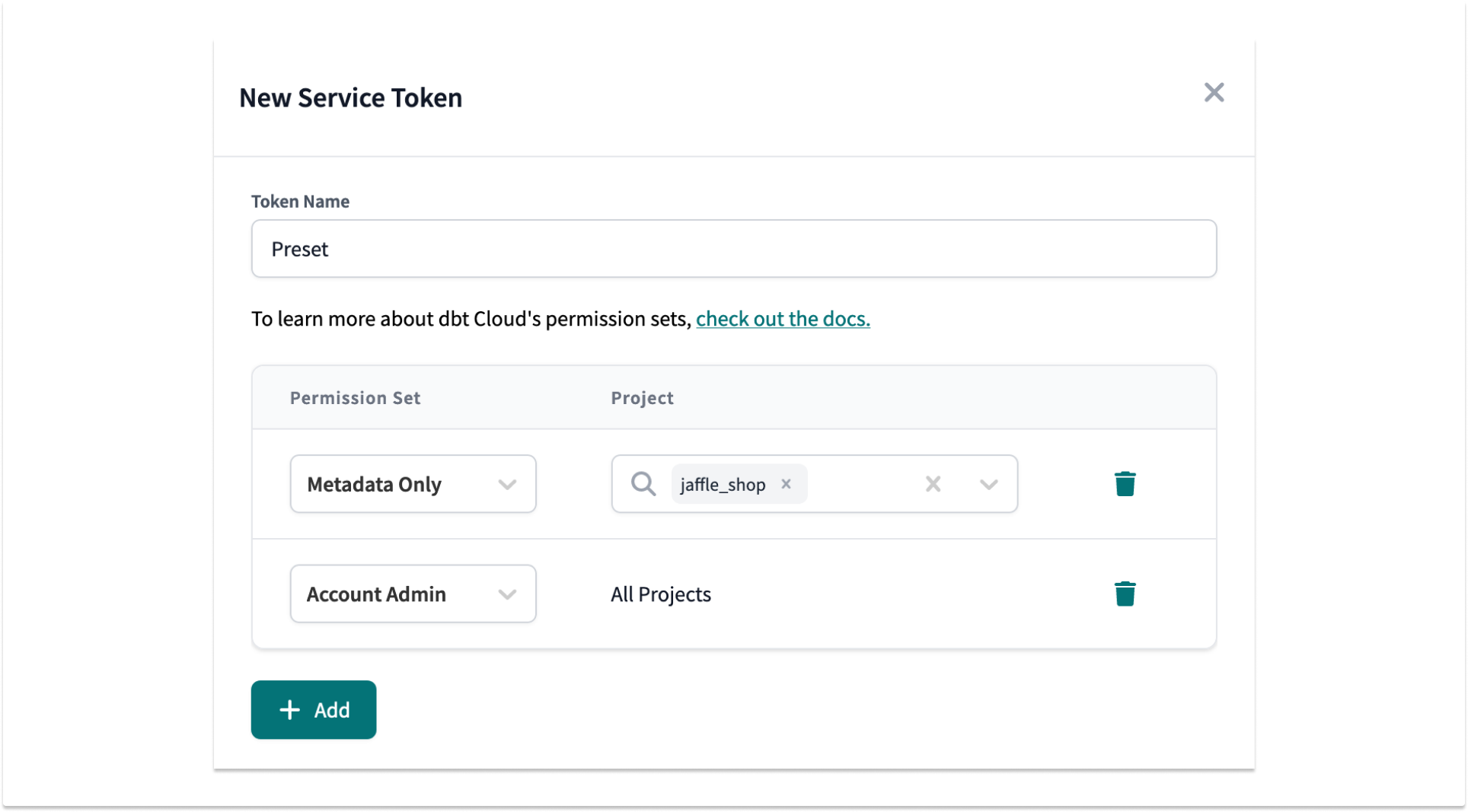

Once you have the project running in dbt Cloud, syncing it to Preset is straightforward. The first step is to create a new service token so that Preset can access the project metadata. This can be done under Account Settings on the dbt Cloud website. You need to create a token with the Account Admin permission, in order to fetch the projects and jobs available, as well as Metadata Only, to fetch the model and metric definitions.

dbt cloud - account setting

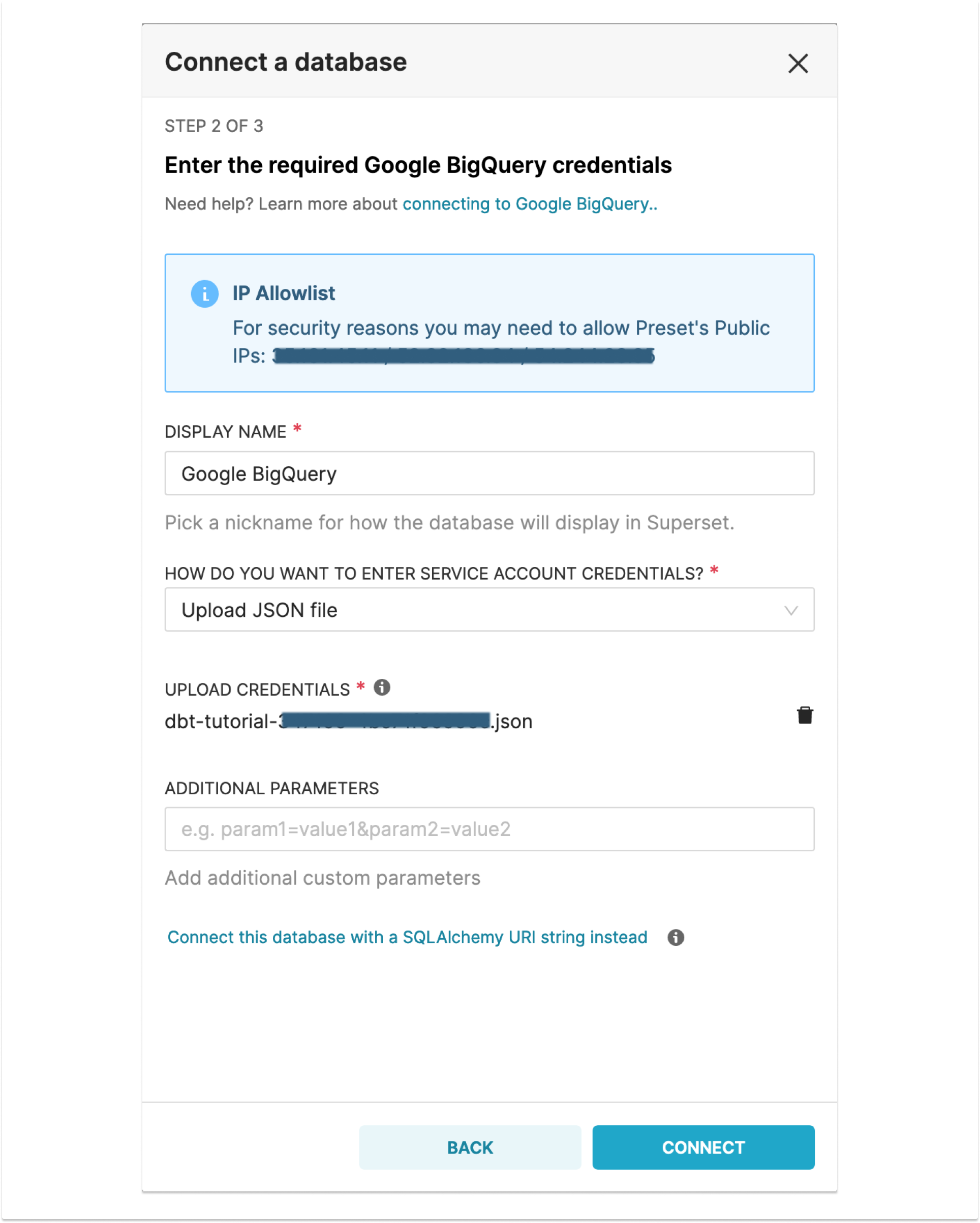

Next, go to Preset and connect the database where your models live. In our project, we’re using BigQuery.

dbt Cloud - credentials (blurred)

After the database has been connected, go to the dbt Cloud drawer.

dbt cloud - drawer

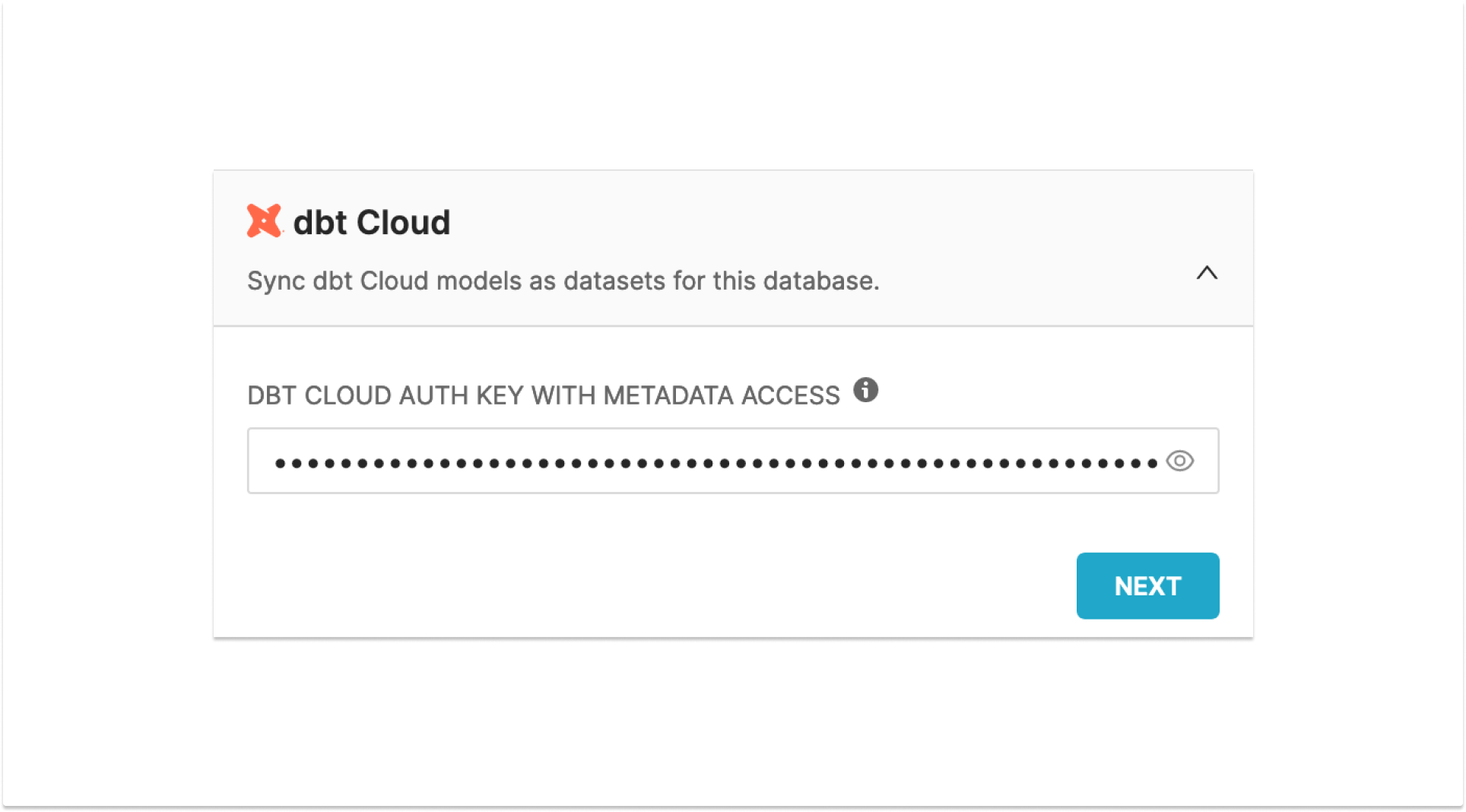

In the dbt Cloud drawer, provide the service token that was generated.

dbt cloud - token authentication

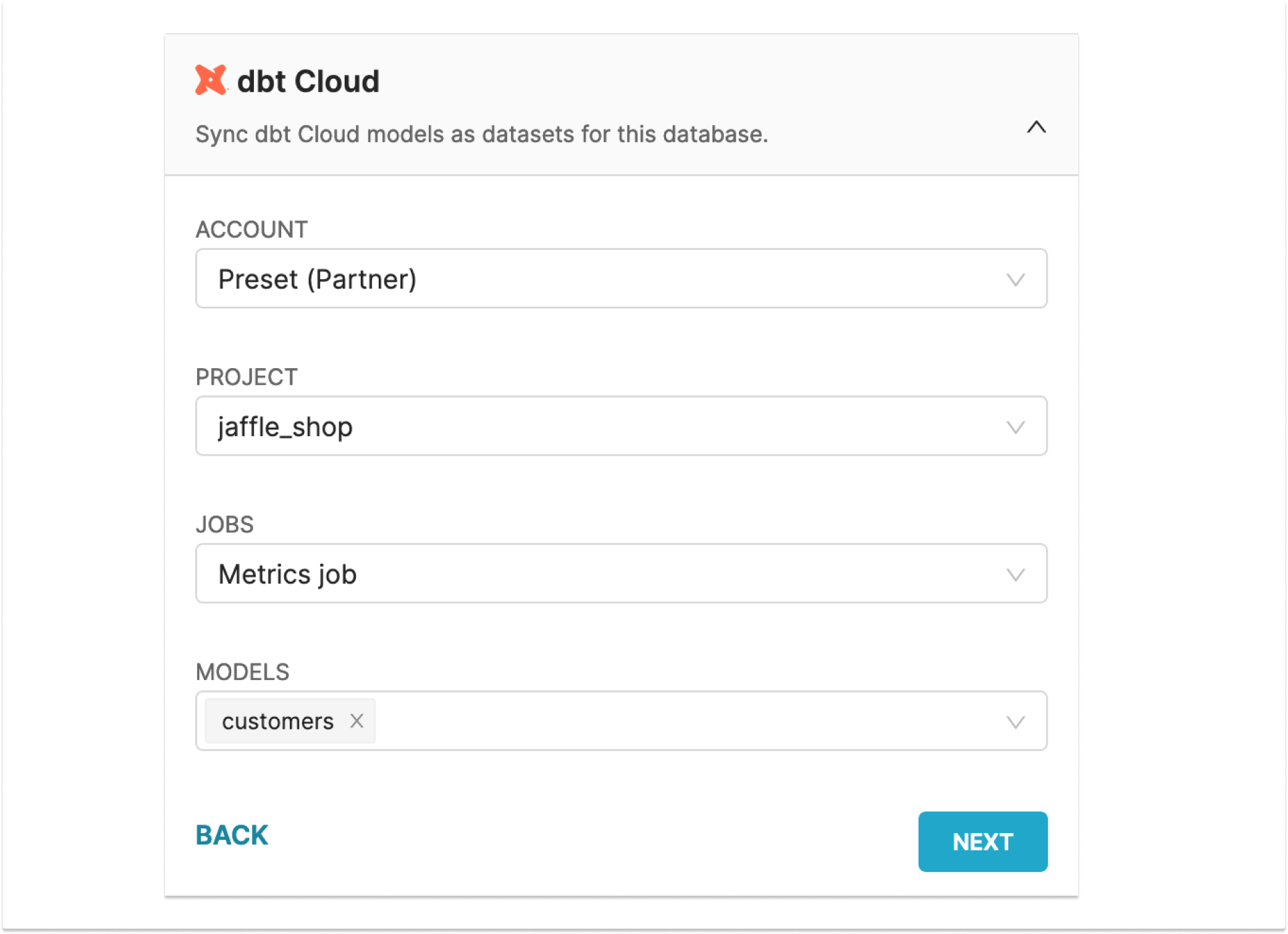

Once you’ve provided the token, choose an Account, a Project, a Job, and finally, the models from the job that you want to synchronize.

dbt Cloud - sync

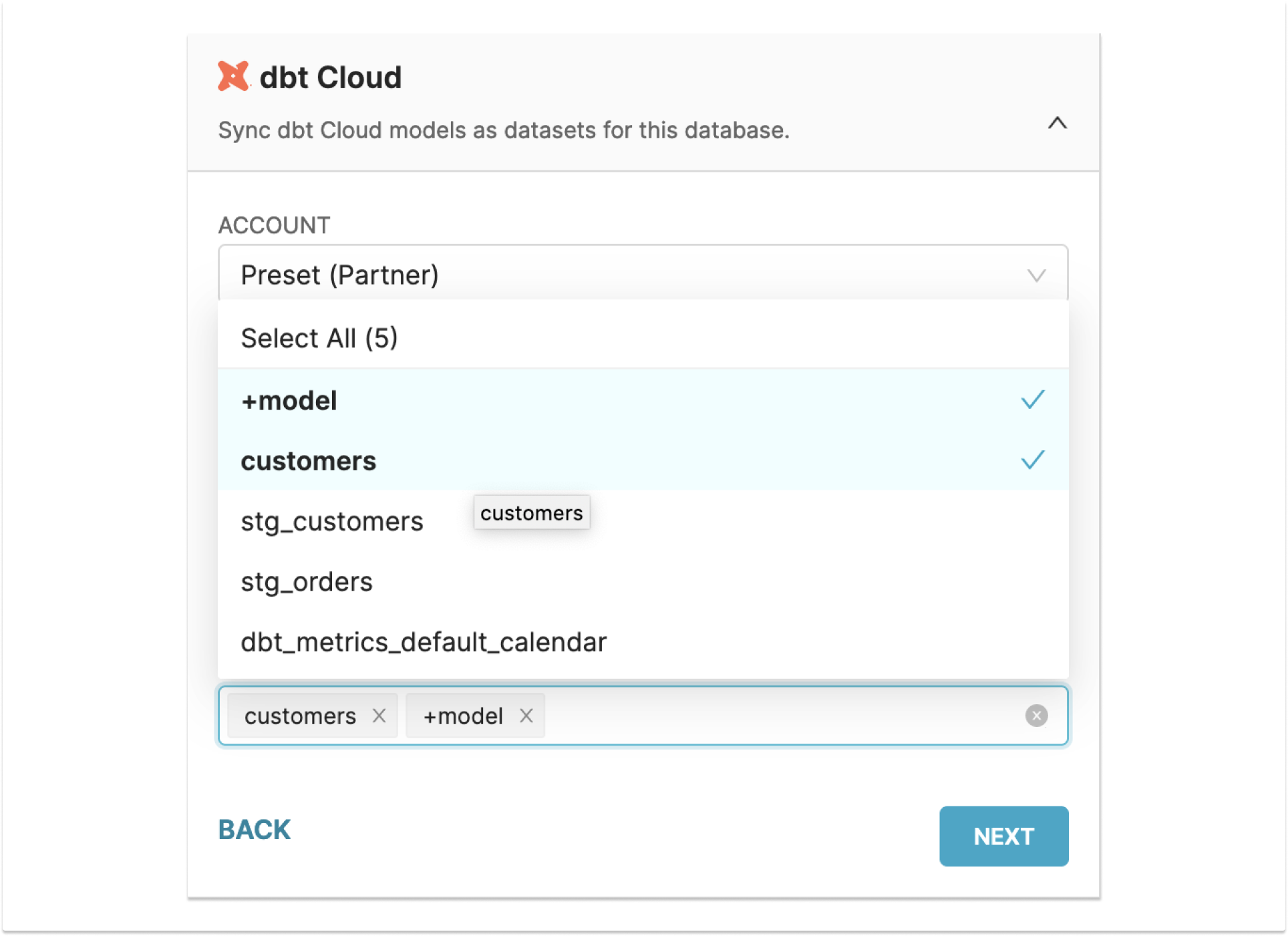

Note that you can choose your dbt models from the dropdown, or by using dbt graph operators if you want to select multiple models.

dbt Cloud - operators

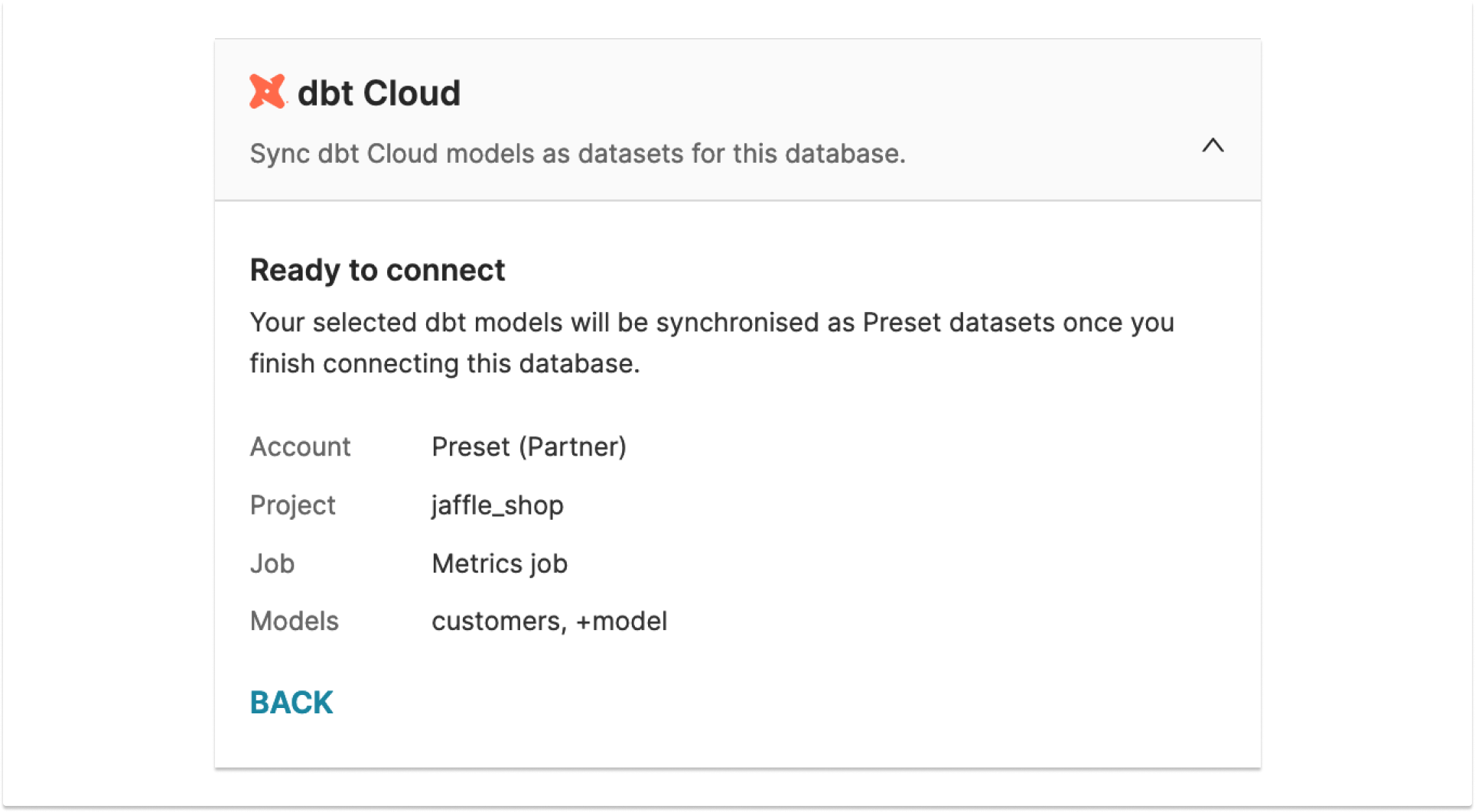

Click Next to finalize the configuration, and click Finishto save the database.

dbt Cloud - confirmation

As soon as the database is created, datasets should be created from the model in the Preset workspace.

dbt cloud - Preset dataset

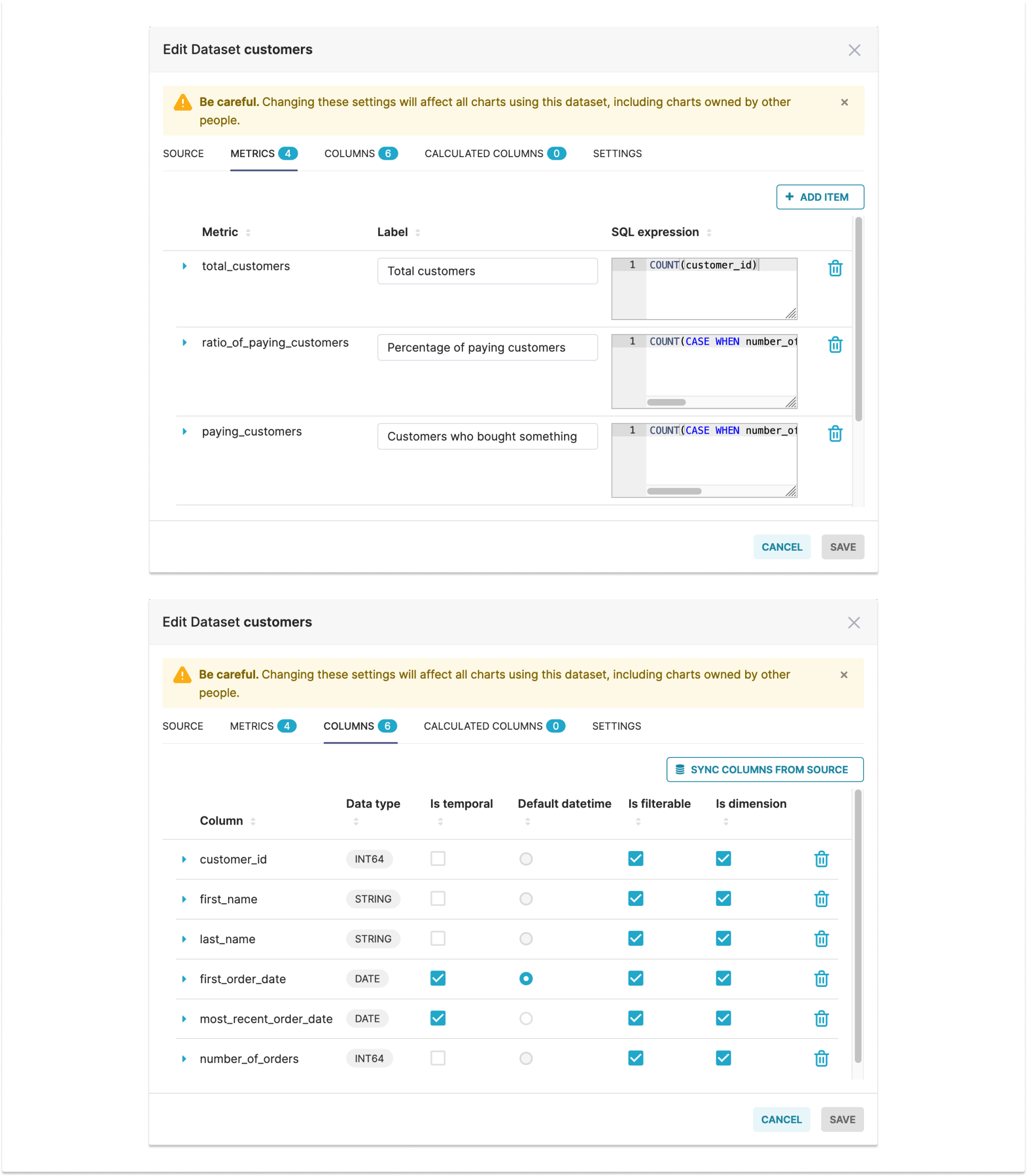

A background process will synchronize all selected models, including their descriptions, columns, and metrics. Synchronization will happen automatically when you first set up your connection and on a daily basis.

dbt Cloud - edit datasets

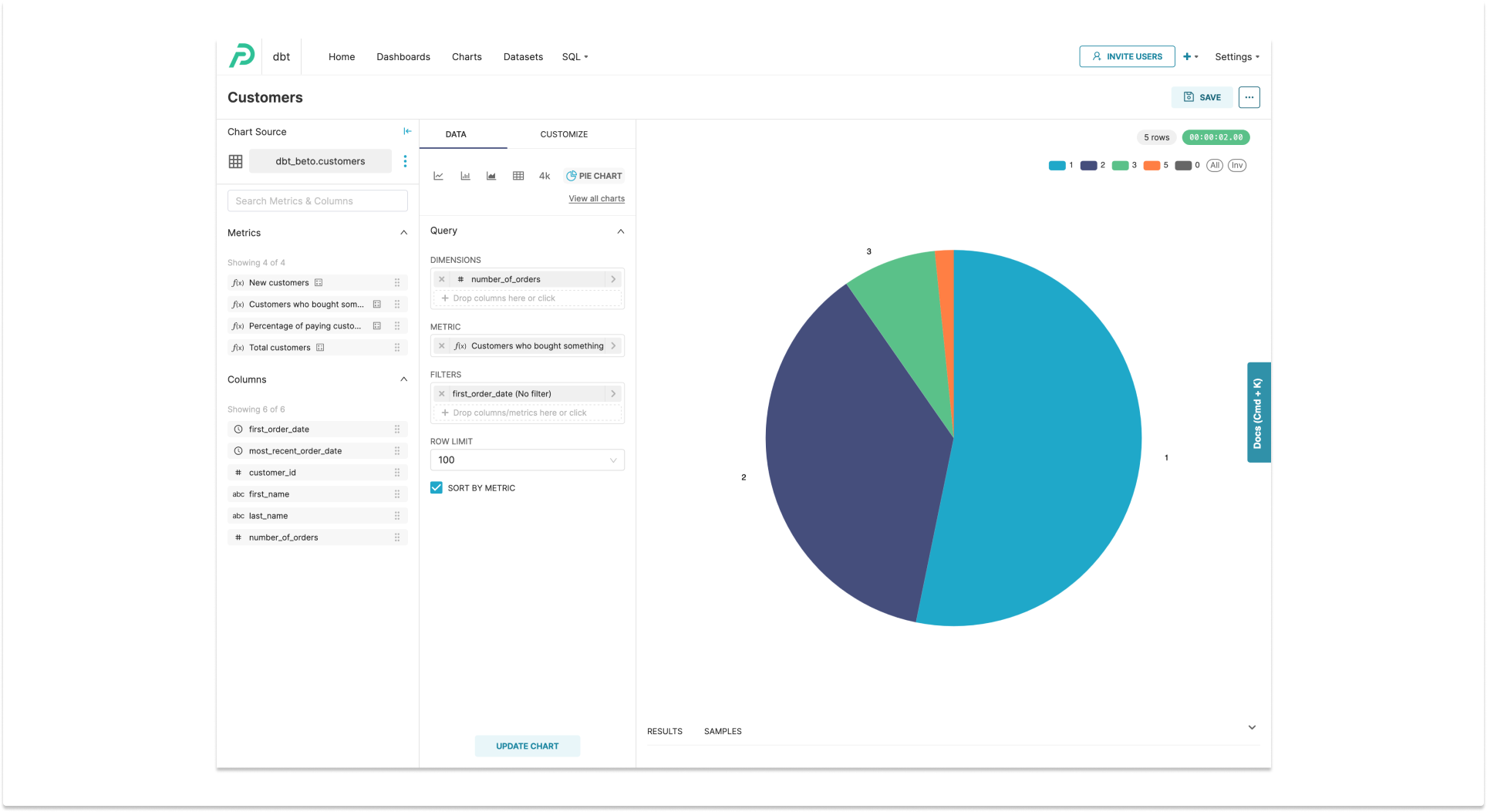

You can now click on the dataset and create charts using the dbt metrics!

dbt Cloud - Preset dashboard

Taking the Next Steps

Preset’s integration with dbt Cloud is available for teams on the Preset Enterprise plan.

If you’re interested in seeing a product demo or learning more about how Preset synchronizes with dbt, reach out to our team!
